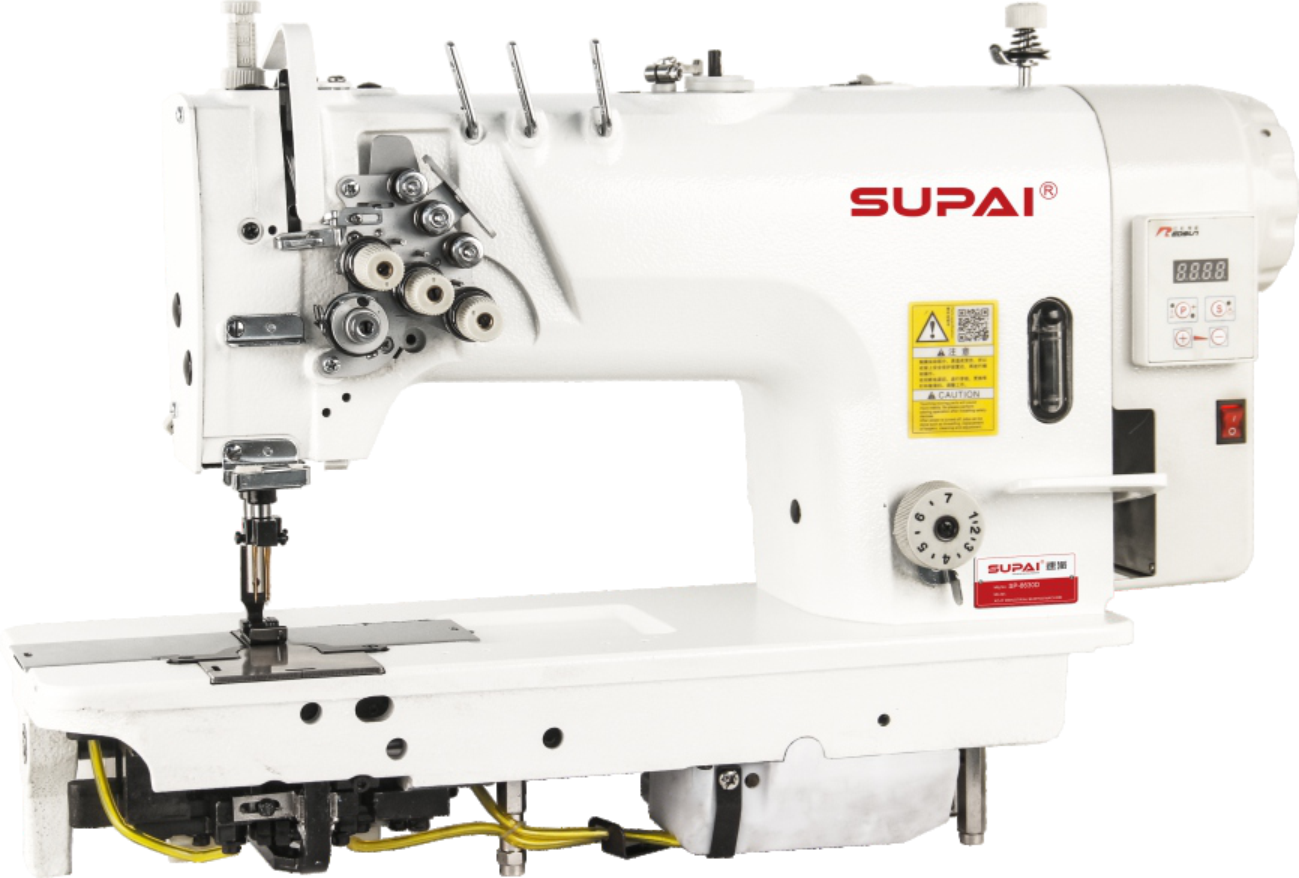

HIGH-SPEED DIRECT-DRIVE THREE-NEEDLE LOCKSTITCH SEWING MACHINE

Use three needle three vertical shuttle, large and small rotary shuttle can be selected. Built-in computer Mechanical trawl wheel makes the sewing fabric more flat. For different seams Fabric can choose rubber wheel, iron wheel, gear. The needle position is 1/4, 3/8, 7/8, one inch, etc., other specifications can be customized.
Compared with the chain-type three-needle lockstitch machine, the machine has the advantages of firm and beautiful stitches, and more choices of needle position changes; for garments that require the same stitches, a process can be omitted and work efficiency can be improved.
Equipped with a direct drive device, the machine is more intelligent, energy-saving, and greatly improves product processing efficiency, thereby reducing operating costs.
Optimized thread passing mechanism, thread passing more easily and smoothly, and can easily sew different fabrics.


| Model | SP-8530D-3 |
| Needle | DPX5 11#-22# |
| Needles | 3 |
| Threads | 3 |
| Needleposition | 1/8" 5/32" 7/32" 3/8" |
| Thin | ★ |
| Medium | ★ |
| Heavy | ★ |
| Press.footlift(mm) | 7-13 |
| Max.speed(s.p.m.) | 3000 |
| Overalldims.(mm) | 675X310X660 |
| Netwt.(kg) | 43/48 |
