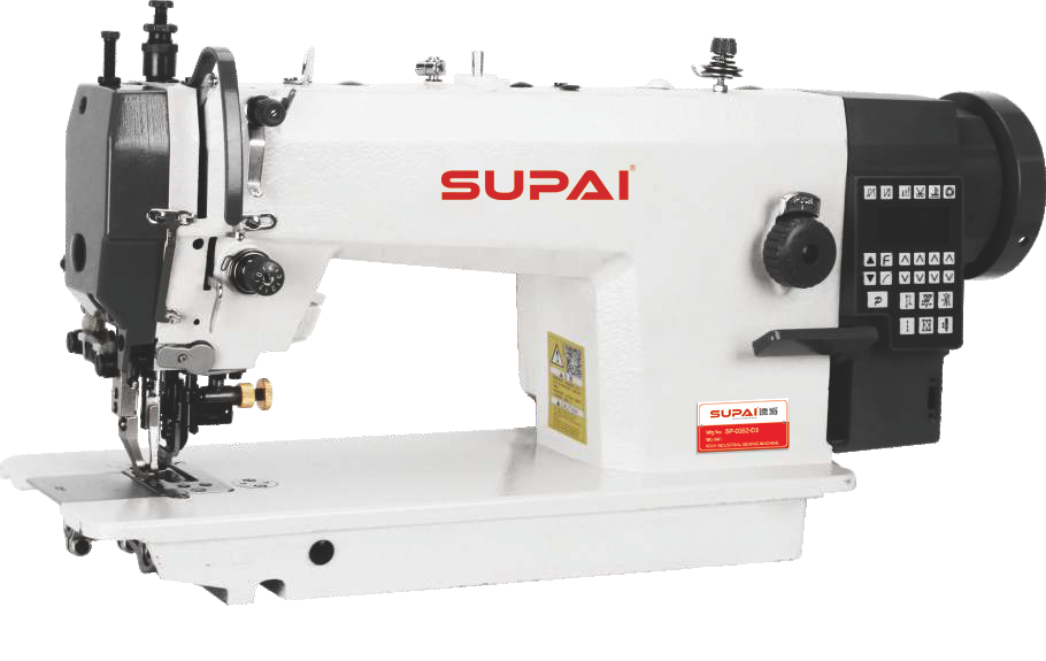

SP-0352-D3

HIGH SPEED SYNCHRONOUS FLAT SEWING MACHINE WITH KNIFE

SP-0352-D3
Product Introduction

1.This machine adopts connecting-rod upper-lower feed mechanism andalternate presser-foot lifting mechanism for smooth material feeding.

2. Built-in servo motor direct-drive enables rapid start-up and precise brakingAdopting advanced all-in-one computer control technology, it delivers stableperformance and strong anti-interference capability. It supports multipleintelligent sewing functions: automatic needle positioning, automaticstitch-lifting count, automatic counter-forward sewing, automatic threadtrimming, electronic thread tensioning, automatic presser-foot lifting, etc. Itcompletes fabric edge trimming simultaneously with sewing, featuring stablestitch formation and neat trimmed edges.

3. Optional cutter devices of various specifications are available, supportingsynchronous or asynchronous operation between cutter and needle bar.

4. Widely applied for processing leather, canvas, seat cushions, sofas,luggage bags, denim garments and other materials.

Applications

Suitable for home textiles, down jackets and quilts.










Product advantages
ModelSP-0352-D3
NeedleDBX17 20-23#
MaxStitchlength(mm)12
Thin★
Medium★
Heavy——
Automatic
    ThreadTrimmer
——
Press.footlift(mm)7-13
Max.speed(s.p.m.)2800
Overalldims.(mm)660X260X480
Netwt.(kg)27/34
