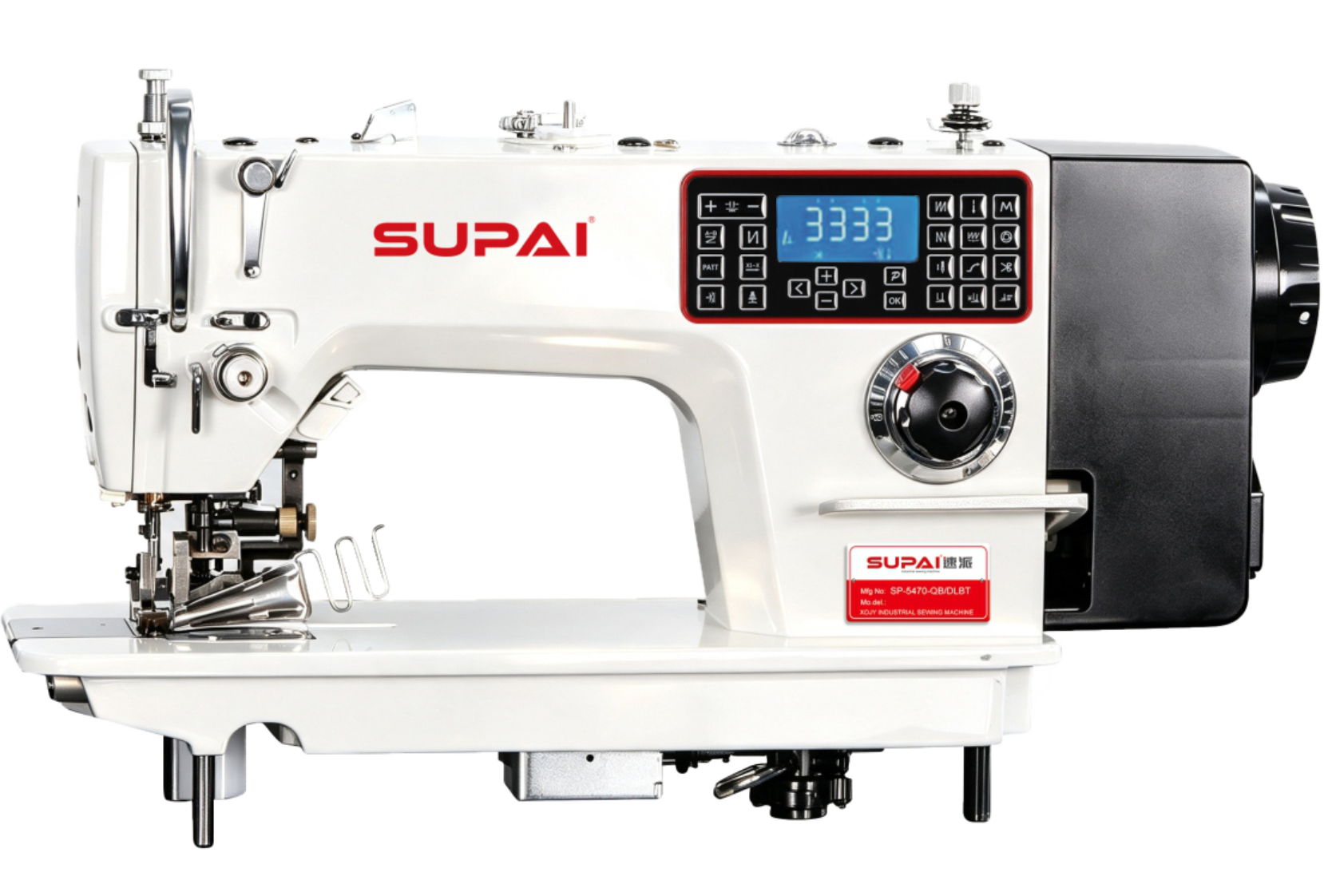

SP-5470-QB/DLBT

SINGLE-STEP FED DIFFERENTIAL CUT-BIND INTEGRATED LOCKSTITCH SEWING MACHINE + POWER-DRIVEN BINDER

SP-5470-QB/DLBT
Product Introduction

1. Front-mounted motor connected to mechanical linkage drives the folder oscillation (patented product).

2. Electronic adjustable folder oscillation stroke, built-in presser foot lifter.

3. Optional needle positions: 1/8",5/32", 3/16", 1/4",5/16".

4. The folder is compatible with market-standard folders.

5. Straight-line folder oscillation, no seam bursting (industry-first innovation).

6. Motor-driven; manual switchable between folder stationary and oscillation modes.



Applications

Suitable for down jackets, cotton-padded coats, jackets, windbreakers, sun-protection garments, trousers. One-step stitching for over-locking / binding-off.







Product advantages
ModelSP-5470-QB/DLBT
NeedleDBX1
LeverStroke(mm)31.8mm
MaxStitchlength(mm)5
Thin★
Medium★
Heavy★
Automatic
    ThreadTrimmer		★
MaxTop-FeedAmount8
Press.footlift(mm)5-13
Max.speed(s.p.m.)4000
Overalldims.(mm)650X270X540
Netwt.(kg)40/50
