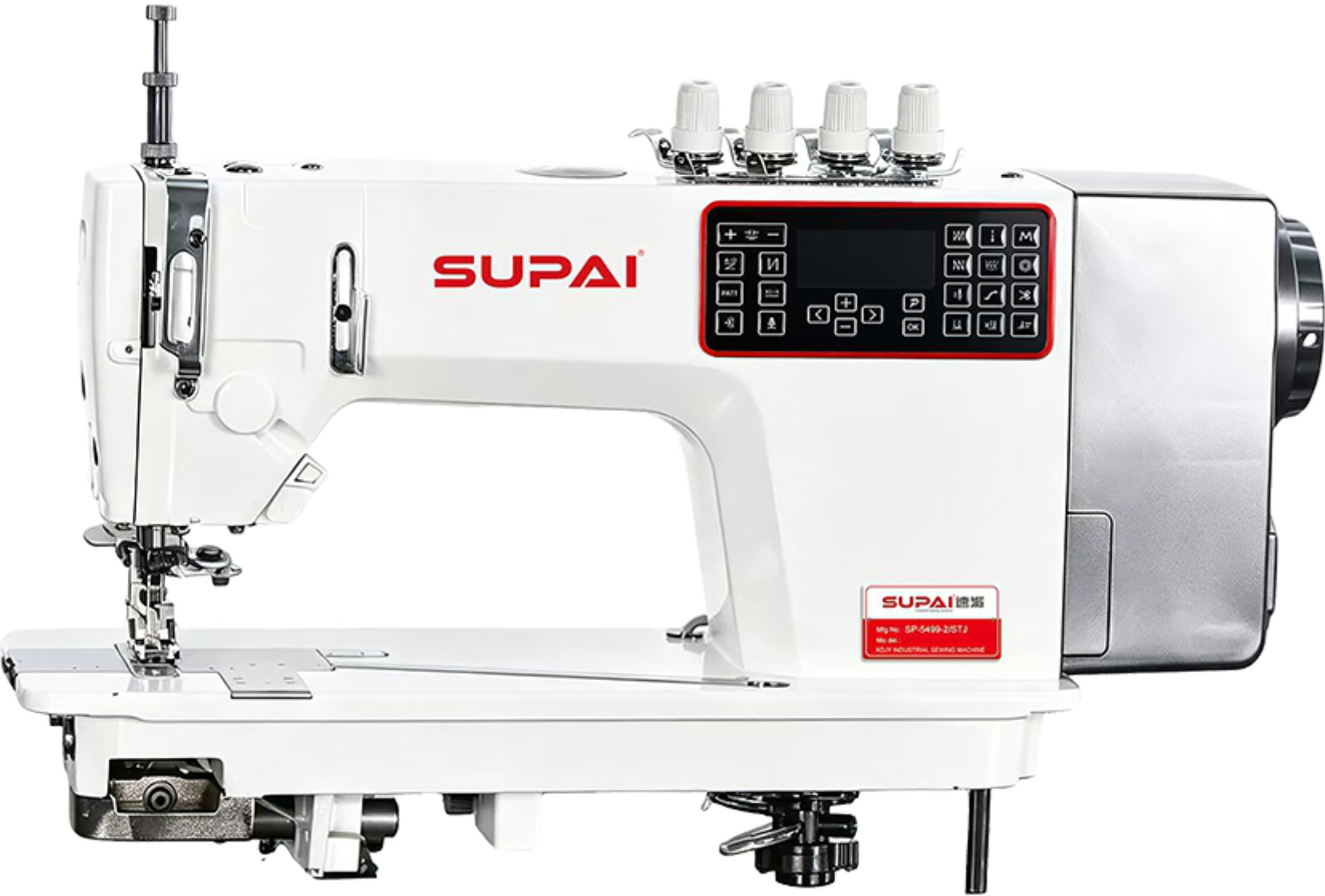

SP-5499-2/STJ

CHAIN-STITCH DOUBLE-NEEDLE DOUBLE-STEP FEED UPPER DIFFERENTIAL FLAT-BED LOCKSTITCH SEWING MACHINE

SP-5499-2/STJ
Product Introduction

1. Upper differential feed is driven by an independent stepping motor. The upper differential feeding amount can be adjusted to flexibly switch between synchronous and differential modes, enabling uniform pleating and preventing misalignment for smoother sewing results.

2. Front-mounted differential connected with mechanical linkages (Patented product).

3. Up to 15 segments can be programmed for electronic upper differential.

4. Manual switching of differential feed amount and stitch length is available.

5. Electronic back-tacking, electronic thread tension, electronic stitchlength, and built-in presser foot lifter.

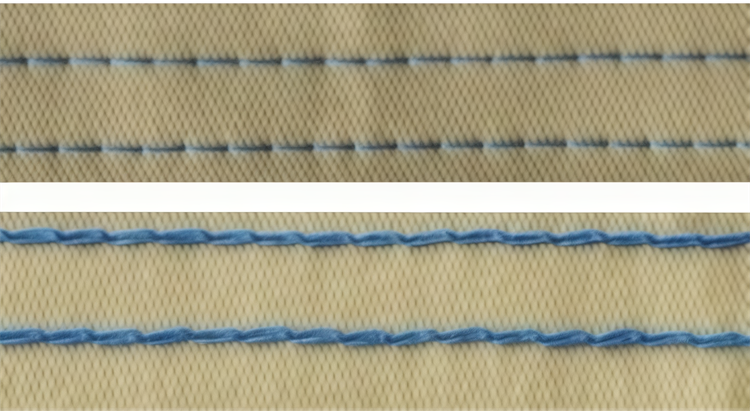

6.The stitching is chain-stitch double-needle stitch.




Applications

Suitable for women’swear, children’s wear, pleated stretch fabrics, or processes requiring chain-stitch for low-tension sewing.





Product advantages
ModelSP-5499-2/STJ
NeedleDBX1
LeverStroke(mm)31.8mm
MaxStitchlength(mm)5
Thin★
Medium★
Heavy★
Automatic
    ThreadTrimmer
★
MaxTop-FeedAmount8
Press.footlift(mm)5-13
Max.speed(s.p.m.)4000
Overalldims.(mm)650X270X540
Netwt.(kg)37/42
