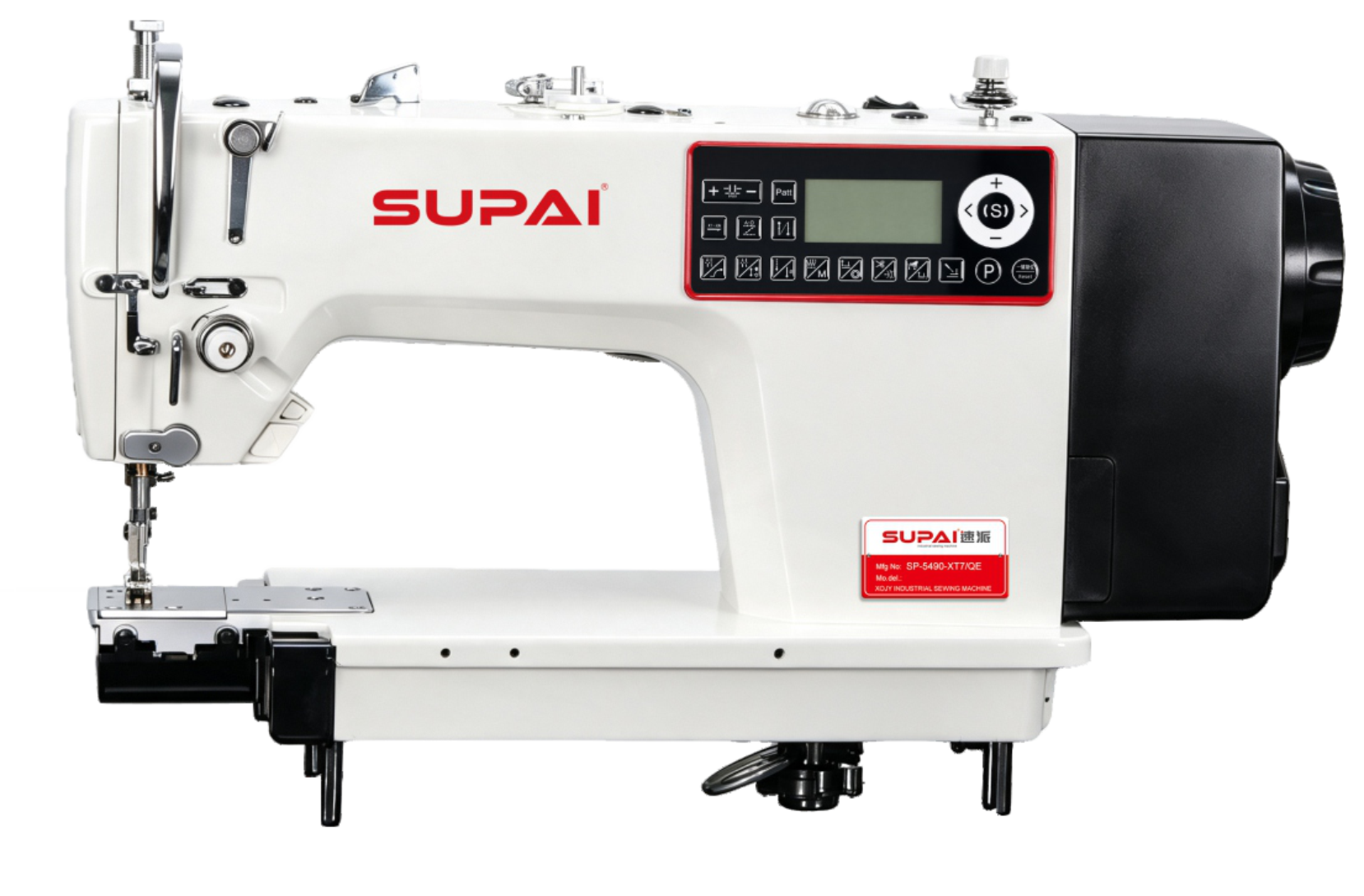

SP-5490-XT7/QE

NARROW-MOUTH SINGLE-STEP MOTOR LOCKSTITCH SEWING MACHINE

SP-5490-XT7/QE
Product Introduction

1.Optional telescopic bracket: Compatible with various cuffs such as elastic andthreaded cuffs.

2. Small-mouth working space: 80mm left-right, 200mm circumference, 60mmfront-rear width. Enables flexible operation in narrow spaces for high-efficiencyproduction.

3. Electronic stitch length, electronic back-tacking, automatic thread trimming,built-in presser foot lifter.




Applications

Suitable for sewing tubular sections such as garment cuffs, trouser hems and waistbands.







Product advantages
ModelSP-5490-XT7/QE
NeedleDBX1
LeverStroke(mm)31.8mm
MaxStitchlength(mm)5
Thin★
Medium★
Heavy★
Automatic
    ThreadTrimmer		★
MaxTop-FeedAmount8
Press.footlift(mm)2.5-5
Max.speed(s.p.m.)4000
Overalldims.(mm)650X270X540
Netwt.(kg)37/42
