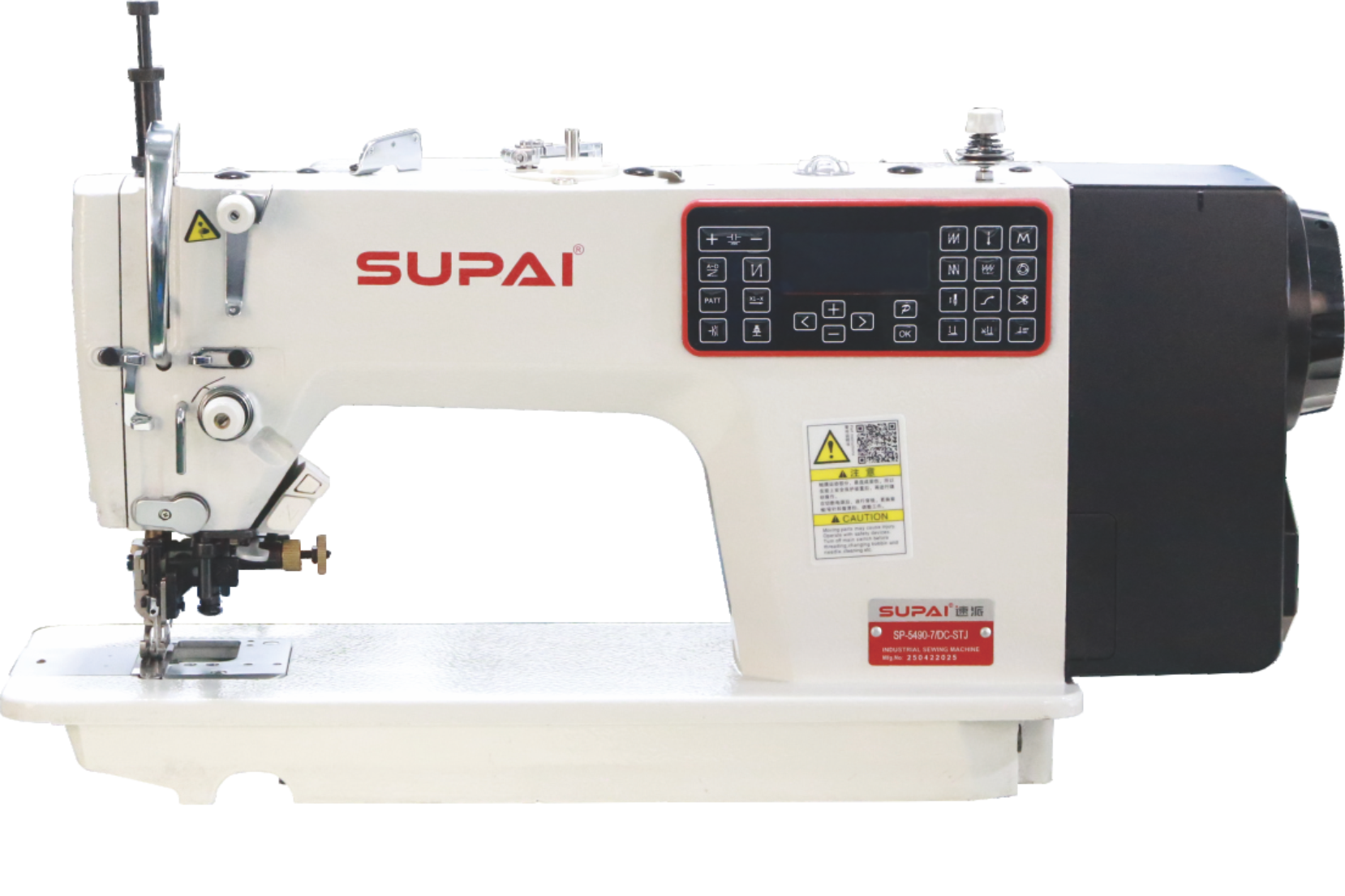

SP-5490-7/DC-STJ

DUAL-STEP UPPER DIFFERENTIAL TRIMMER FLAT-BED LOCKSTITCH SEWING MACHINE

SP-5490-7/DC-STJ
Usage scenario view


Product Introduction

1. The upper differential feed is driven by an independent stepping motor. The upper differential feed amount can be adjusted to prevent misalignment anddeliver smoother sewing results.

2. Front-mounted differential connected with mechanical linkage (patented product).

3. The electronic upper differential supports up to 15 adjustable segments.

4. Differential feed amount and stitch length can be manually switched simultaneously.

5. Electronic back-tacking, electronic stitch length, and built-in presser foot lifter.

6. Optional needle positions: 1/8", 5/32", 3/16", 1/4", 5/16".




Applications

Suitable for sewing & trimming shirts, inner-outer collars, softshell, light-weight& stretch fabrics, down-cotton padded garments (fabric throw-off), andhome-textile wool fabrics.








Product advantages
ModelSP-5490-7/DC-STJ
NeedleDBX1
LeverStroke(mm)31.8mm
MaxStitchlength(mm)5
Thin★
Medium★
Heavy★
Automatic
    ThreadTrimmer
★
MaxTop-FeedAmount8
Press.footlift(mm)2.5-5
Max.speed(s.p.m.)4000
Overalldims.(mm)650X270X540
Netwt.(kg)40/50
