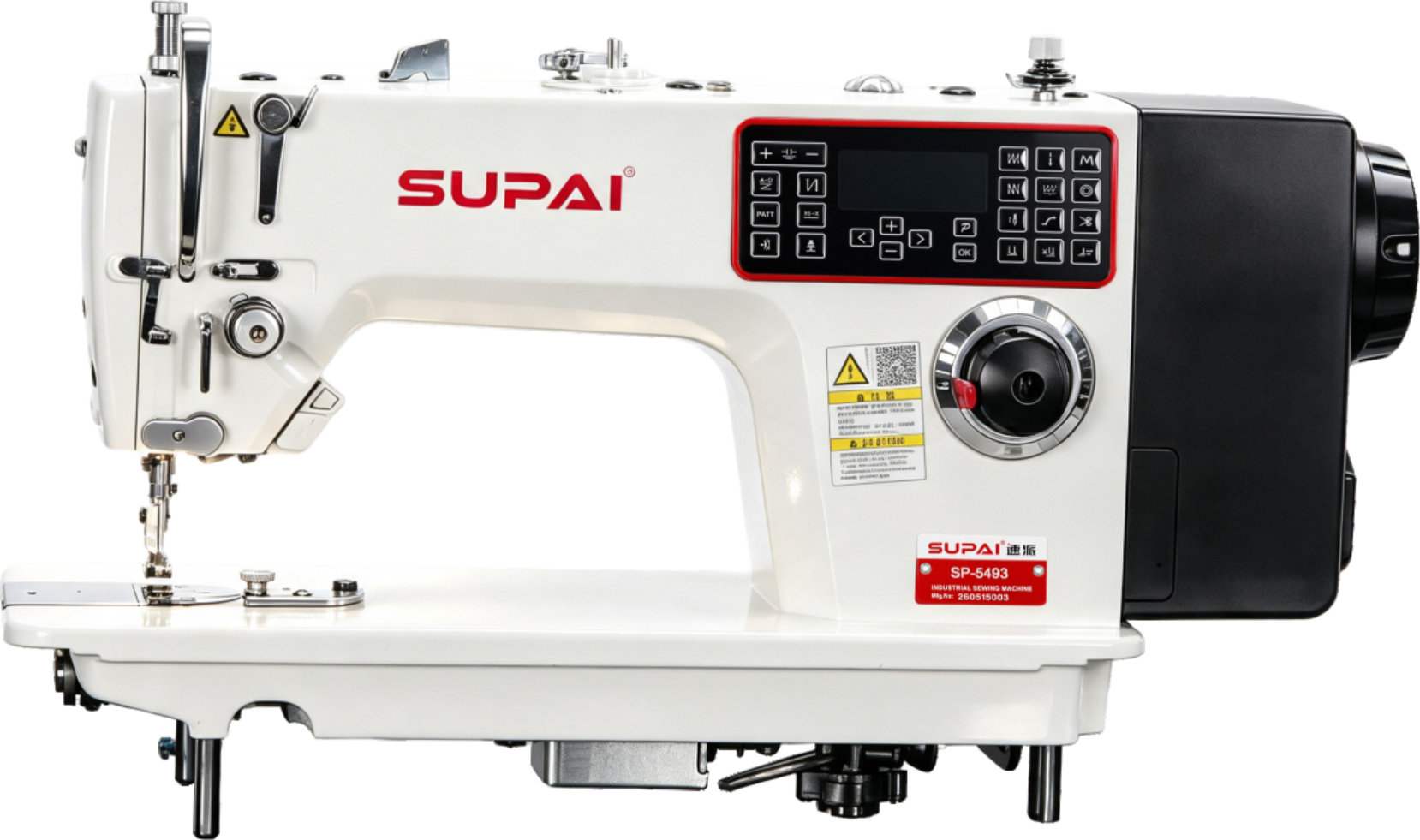

SP-5493

INGLE-STEP LOWER DIFFERENTIAL FEED FLAT-BED LOCKSTITCH SEWING MACHINE

SP-5493
Product Introduction

1.Step-controlled differential feed.

2.One-touch switch between manual and automatic modes.

3.Rear-mounted differential feed adjustment link for easier maintenance and adjustment.

4.Electronic back-tacking, electronic thread clamping, automatic thread trimming, built-in presser foot lifter.





Applications

For attaching zippers on shirts, fashion garments and women’sapparel.








Product advantages
ModelSP-5493
NeedleDBX1
LeverStroke(mm)31.8mm
MaxStitchlength(mm)4
Thin★
Medium★
Heavy——
Automatic
    ThreadTrimmer		★
MaxTop-FeedAmount6
Press.footlift(mm)5-13
Max.speed(s.p.m.)4000
Overalldims.(mm)650X270X540
Netwt.(kg)40/50
